Name: Large current slip ring, high power rotary joint gas liquid mixed transmission, carbon brush slip ring LPA000-09800-01PE-3020-04L
Brand: Large current slip ring, high power rotary joint gas liquid mixed transmission, carbon brush slip ring LPA000-09800-01PE-3020-04L
SKU: LPA000-09800-01PE-3020-04L
Rating: 4.5 (115 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: LPA000-09800-01PE-3020-04L

Rotating speed: 0~5rpm

Number of circuits: 40CKT

Protection Grade: IP22

Basis informatie

Model Number: LPA000-09800-01PE-3020-04L

Betalen & Verzenden Algemene voorwaarden

Productomschrijving

Product Description

Bargain Price Only in Alibaba

Large Current Slip Ring
Model	Application area
LPA000-09800-01PE-3020-04L	Floating Crane

Advantages

Simultaneous rotary transmission of high power, signals, gas and fluid.
Adopts imported graphite brush with stable performance
Large pipe diameter high temperature rotary joint, can endure high temperature up to 150℃,
65mm pipe diameter

Features

Large size, outer configuration 1.3*1.3*3M
Super long service life, regular maintenance
Excellent transmission performance, smooth operation,
good isolation with hydraulic channel and pneumatic channel

Electrical & Electroni		Mechanical		Enviromental
Number of circuits	40CKT	Rotating speed	0~5rpm	Temperature	-20°C~+50°C
Current	9×800A+1×PE+ 30×20A+4×fluid	Contact material	Precious metal/ copper graphite	Humidity	≤95%RH
Voltage	440VAC/230V	Housing material	Q235	Protection Grade	IP22
Dielectric strength	≥2500VAC@60Hz ≥500VAC@60Hz	Wire type	150mm2rubber wire/ AWG12# Teflon	Others
Insulation resistance	≥500MΩ@1000VDC ≥500MΩ@500VDC	Wire length	/	Life span	Can be customized

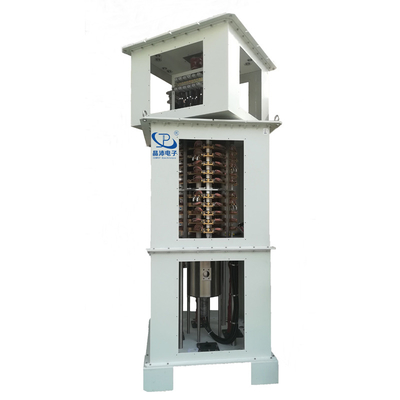

Product Image

Product outline drawing

JINPAT Electronics entered into slip ring field in 1996. It is a national high-tech enterprise

specializing in the research and development, manufacturing, and sales of slip rings. JINPAT

has a senior R&D team that consists of numerous engineers who have ever worked in multina

tional companies or famous insititutes, which are committed to the development and manu facturing of high-quality slip rings that improve system performance and prevent damage to the wires as they rotate. JINPAT Electronics has passed the ISO9001 quality management system certification, the

ISO14001 environmental management system certification, the UL, FCC, CE, RoHS, REACH, BV

classification society’s certification, the explosion-proof certification, and it has obtained 55 national patents. Keeping improving and innovating, JINPAT slip rings are not only reliable in performnace, long in lifespan, free in maintenance, but also with the features of high protection grade, anti-

explosion, anti-quake, anti-impact, high and low temperature resistance, high perssure resistance, low electrical noise and low loss of signal transmission. JINPAT slip rings have been widely used in the navy, army, air force and police force. Our products are also used in the security, industrial automation, power, instrumentation, aviation, transportation, construction, wind power, robotics, medical and other cutting-edge fields. JINPAT Electronics has a long-term relationship with many domestic and foreign industrial technology giants such as GE, Honeywell, CNOOC, BYD, Sany Heavy Industry, Zoomlion, SUZLON, AVIC, CASC, CASIC, CETC, CSIC, and South Surveying & Mapping. JINPAT is committed to a win-win outcome with its customers by providing quality products and services.
