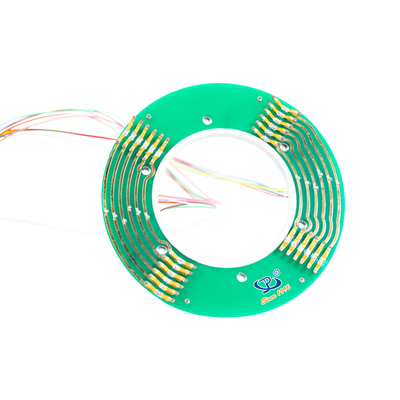

Name: Precious Metal Pancake Slip Ring, 8 Circuits 3A Hole Size 60mm, For Robots, PCB Slip Ring
Brand: Precious Metal Pancake Slip Ring, 8 Circuits 3A Hole Size 60mm, For Robots, PCB Slip Ring
SKU: LPK060-0803-04S
Rating: 4.8 (100 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: LPK060-0803-04S

Type: Electronic Accessories

Circuits: 3/9 circuits

Voltage Rating: 27VDC/AC

Current Rating: 3A per circuit

Contact Material: Precious metal

Basis informatie

Model Number: LPK060-0803-04S

Betalen & Verzenden Algemene voorwaarden

Productomschrijving

Product Description

Bargain Price Only in Alibaba

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

High Rotating Speed
Unfailing contact, light figure
Extremely low physical noise
Transmitting power and signal in 360° rotation
No interference or connection drop

Advantages

Ready-made photoelectric encoder
Optional solid and hollow shafts
Rapid delivery
Custom solution

Specification

Electronic & Electric		Mechanical
Circuits	2circuits *6A	Working Speed	0~180rpm
Circuits	2circuits *6A	Inner Diameter	Φ200mm
Working Voltage	12V	Contact	Nobel Metal
Dielectric Strength	≥300V@50Hz	Housing	FR-4
Insulation	200MΩ@500VDC	Wire Length	Stator Wire:300mm
Environment		Remarks
Temperature	-20°C~+60°C	Installation Method	PCB board is fixed on the customer's flange
Humidity	≤60%RH	Installation Method	PCB board is fixed on the customer's flange

Main Application

Packaging / wrapping machinery
Semiconductor handling systems
Industrial machinery
Exhibit Display machinery
Medical equipment
Rotary index tables
Process control equipment
